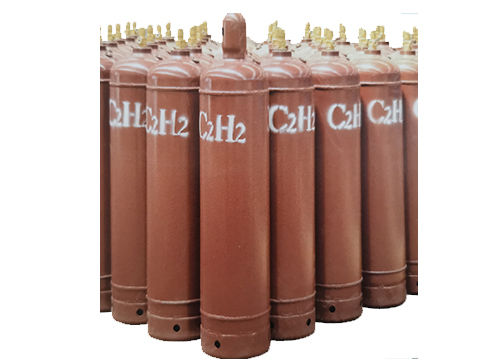

Design Pressure: 2.5MPa, Working Pressure: 1.5MPa
Structure: Filled with porous filler (e.g., calcium silicate) + acetone solvent to prevent decomposition and explosion
Material: Carbon Steel, Cylinder Valve with Backfire Arrester
Europe: CE/TPED certification, complying with ADR specifications, suitable for metal cutting/welding; small-volume models for portable operation.
America: DOT certification, adapting to OSHA safety specifications; backfire arrester as standard to ensure industrial welding safety.
Southeast Asia: High cost-effectiveness, suitable for construction/ship welding; humid-heat resistant design to extend filler service life.
Middle East: High-temperature resistant design to prevent filler decomposition, suitable for industrial maintenance scenarios in desert areas.
Africa: Sturdy structure, easy maintenance, suitable for infrastructure welding, reducing procurement thresholds.
|
Parameter Category |
Core Indicators |
Remarks |
|
Volume Range |
1L/2L/4L/8L/10L/20L/40L/50L |
Small volume (1-10L) for portability; large volume (20-50L) for industrial bulk use |
|
Design Pressure |
15MPa/20MPa/25MPa |
Customized according to medium characteristics (e.g., 2.5MPa for acetylene) |
|
Working Pressure |
13.5MPa/15MPa/20MPa |
Complies with standards such as ISO 9809, DOT-3AA, TPED |
|
Material |
37Mn/34CrMo4 alloy steel (seamless); carbon steel/composite material (for acetylene) |
High strength, fatigue resistance, passing water pressure/rupture test |
|
Cylinder Valve |
CGA/DIN/JIS standard interface |
Adapts to filling equipment in different regions |
|
Implementation Standards |
ISO 9809-1/-2, DOT-3AA, TPED, GB 5099 |
Covers certifications of global mainstream markets |
|
Safety Accessories |
Cylinder valve with overcurrent protection/fusible plug, shockproof rubber ring, cylinder cap |
Complies with dangerous goods transportation safety regulations |
