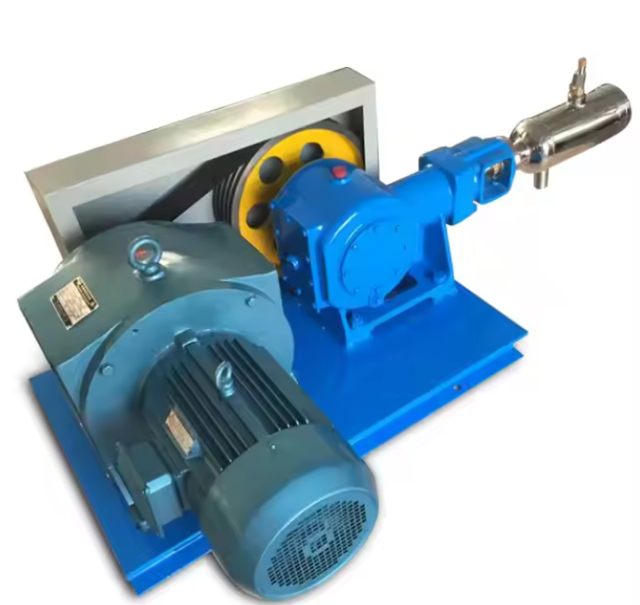

Cryogenic centrifugal pump with small flow and high head Application Scope
The SLP - 13/130 is a cryogenic centrifugal loading and unloading pump with small flow and high head. Many tank trucks and tank containers on the market have a liquid outlet of DN40. If a centrifugal pump with a liquid inlet of DN65 is used, it will cause insufficient liquid intake and thus cavitation. To meet the needs of such users, our company has developed and manufactured a small - caliber single - suction directly - connected centrifugal pump, which has well solved this problem. Since the head is higher than that of ordinary centrifugal pumps, it can be competent for the filling of 16 - kg high - pressure tanks and tank trucks. At the same time, it is equipped with a frequency converter, which can better adjust the rotation speed to achieve a higher outlet pressure and flow. It is used for the filling and transfer of cryogenic liquid tank trucks such as liquid nitrogen, liquid oxygen, liquid argon, and liquefied natural gas.
Performance Characteristics
- Compact and simple structure. - The volute and impeller are made of high - performance copper alloy to ensure safety in liquid oxygen working conditions. - The mechanical seal is mature, reliable, has strong cavitation resistance, a long service life, and is easy to install. - High - strength cryogenic stainless - steel shaft. - The impeller and rotor have passed dynamic and static balance tests to ensure the stability of the rotor. - A variable - frequency motor can be selected to cover a wide flow range and head. - The inlet and outlet liquid flanges are equipped with flexible joints and an inlet liquid filter. The pipeline vibration is small, and the operation is stable.
Performance Parameters
Serial Number Name Specific Parameters 1 Form Fixed / Variable - frequency speed regulation (energy - saving IP54) / Direct - connected horizontal 2 Pump Head Single - suction / Single - stage 3 Design Temperature -196°C 4 Medium Used LO2/LN2/LAr 5 Inlet Pressure Less than 0.6MPa 6 Maximum Head 130 meters 7 Flow Rate 13 cubic meters per hour (liquid flow rate) 8 Motor Parameters 380V/50HZ/3 - PH/2P 9 Control Method Automatic stop and manual start 10 Total Machine Weight 300KG 11 Delivery Time 30 - 60 days
Standard Configuration
- Complete pump unit - Inlet and outlet liquid hoses - Electric control box
Natural Gas Explosion - Proof Cryogenic Centrifugal Pump
The natural gas explosion - proof cryogenic centrifugal pump is a single - suction, single - stage, directly - connected centrifugal pump, which is used for the transportation of liquefied natural gas (LNG). This pump is equipped with an explosion - proof motor and is suitable for the filling, unloading, and transfer operations in combustible gas tanks and workshops.
Performance Characteristics
- Compact and simple structure.
- The volute and impeller are made of high - performance copper alloy to ensure safety in liquid oxygen working conditions.
- The mechanical seal is mature, reliable, with strong cavitation resistance, long service life, and easy installation.
- High - strength cryogenic stainless - steel shaft.
- The impeller and rotor have passed dynamic and static balance tests to ensure the stability of the rotor.
- A variable - frequency motor can be selected to cover a wider flow range and head.
- The inlet and outlet liquid flanges are equipped with flexible joints and an inlet liquid filter. The pipeline vibration is small, and the operation is stable.
Performance Parameters
Serial Number Name Specific Parameters 1 Form Fixed / Variable - frequency speed regulation (energy - saving IP54) / Direct - connected horizontal 2 Pump Head Single - suction / Single - stage 3 Design Temperature - 196°C 4 Medium Used LNG 5 Inlet Pressure Less than 0.6MPa 6 Maximum Head 90 meters 7 Flow Rate 24 cubic meters per hour (liquid flow rate) 8 Motor Parameters 380V/50HZ/3 - PH/2P/Explosion - proof 9 Control Method Automatic stop and manual start 10 Total Machine Weight 300KG 11 Delivery Time 30 - 60 days
Standard Configuration
- Complete pump unit
- Inlet and outlet liquid hoses
- El
Low temperature centrifugal pump
The cryogenic centrifugal loading and unloading pump is a single - suction, single - stage, directly - connected centrifugal pump. The pump head and the motor are directly connected by a main shaft and driven directly by the motor. With a simple design and stable operation, it is mainly used for the filling and transfer of cryogenic liquid tank trucks such as liquid nitrogen, liquid oxygen, liquid argon, and liquefied natural gas. It is mostly used in air separation plants for filling cryogenic tank trucks.
Performance Characteristics
- Compact and simple structure. - The volute and impeller are made of high - performance copper alloy to ensure safety in liquid oxygen working conditions. - The mechanical seal is mature, reliable, with strong cavitation resistance, long service life, and easy installation. - High - strength cryogenic stainless - steel shaft. - The impeller and rotor have passed dynamic and static balance tests to ensure the stability of the rotor. - A variable - frequency motor can be selected to cover a wider flow range and head. - The inlet and outlet liquid flanges are equipped with flexible joints and an inlet liquid filter. The pipeline vibration is small, and the operation is stable.
Performance Parameters
Serial Number Name Specific Parameters 1 Form Fixed / Variable - frequency speed regulation (energy - saving IP54) / Direct - connected horizontal 2 Pump Head Single - suction / Single - stage 3 Design Temperature -196°C 4 Medium Used LO2/LN2/LAr 5 Inlet Pressure Less than 0.6MPa 6 Maximum Head 90 meters 7 Flow Rate 24 cubic meters per hour (liquid flow rate) 8 Motor Parameters 380V/50HZ/3 - PH/2P 9 Control Method Automatic stop and manual start 10 Total Machine Weight 300KG 11 Delivery Time 30 - 60 days
Standard Configuration
- Complete pump unit - Inlet and outlet liquid hoses - Electric control box
Carbon Dioxide Gear Centrifugal Pump
This gear pump is suitable for the loading and unloading of liquid carbon dioxide. It is characterized by its small size and convenient operation. It is often integrated into carbon dioxide tank containers or tank trucks, facilitating the transfer and transportation of the liquid.
Performance Parameters
Serial Number Name Specific Parameters 1 Form Horizontal 2 Feature Gear - driven 3 Design Temperature - 80°C 4 Medium Used LCO₂ 5 Inlet Pressure 1.38 - 2.4MPA 6 Maximum Head 40 - 50 meters 7 Flow Rate 18000 - 22000L/H 8 Motor Parameters 380V/50HZ/2P or 220V/60HZ/2P 9 Control Method Automatic stop and manual start 10 Bare Pump Weight 180KG 11 Delivery Time 7 - 30 days
Performance Characteristics
- Compact structure - Convenient installation and maintenance - Stable transmission - Long - lasting graphite bearings - Short supply cycle
Standard Configuration
- Pump unit - Electric control box
Labyrinth Seal Pump
This pump is applicable for the transportation of LNG, LOX, LIN, and LAr. It can be used in the filling systems, backup systems, and process systems for cryogenic media in air - separation systems and LNG systems.
Performance Parameters
Serial Number Name Specific Parameters 1 Form Horizontal 2 Characteristic 1 - 3 stages 3 Design Temperature - 196°C 4 Medium Used LNG, liquid nitrogen, liquid argon, liquid oxygen 5 Gas - seal Pressure 0.4 - 0.6MPa 6 Maximum Head 30 - 150 meters 7 Flow Rate 3 - 120 cubic meters per hour (liquid flow rate) 8 Motor Parameters 380V/50HZ/3 - PH/2P (Explosion - proof option available) 9 Control Method Automatic stop and manual start 10 Inlet Pressure 0.015 - 0.4MPa 11 Delivery Time 30 - 60 days
Performance Characteristics
- The pump shaft is directly connected to the motor shaft, featuring a compact and simple structure. - It adopts labyrinth seal, enabling continuous operation for over 8000 hours. - The volute, inducer, suction chamber, and impeller are made of bronze alloy with excellent cryogenic performance, and the main shaft is made of alloy steel. - An inducer is installed to generate a certain pre - rotation of the liquid before it enters the impeller, preventing pump cavitation.
