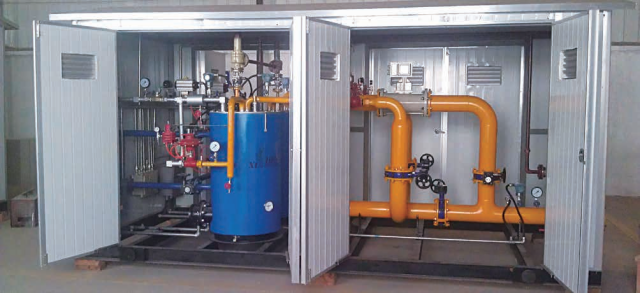

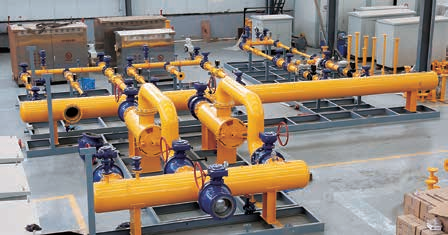

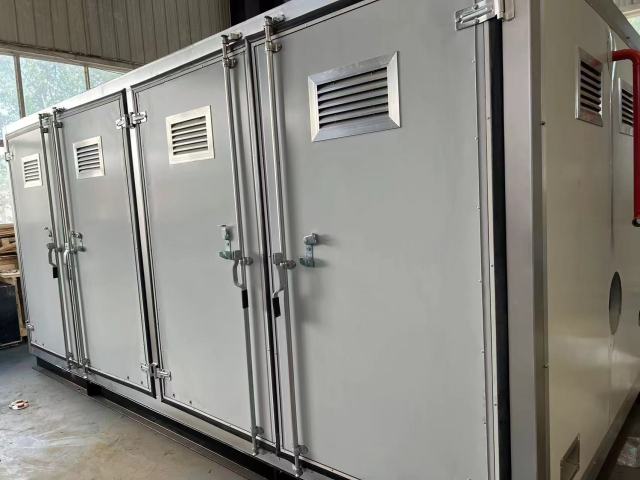

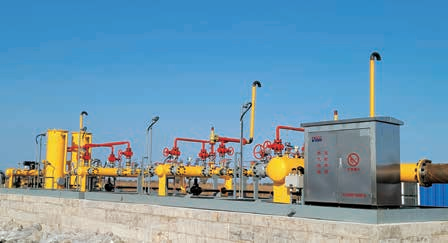

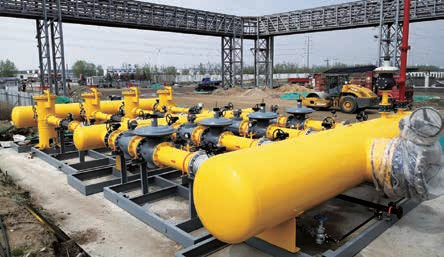

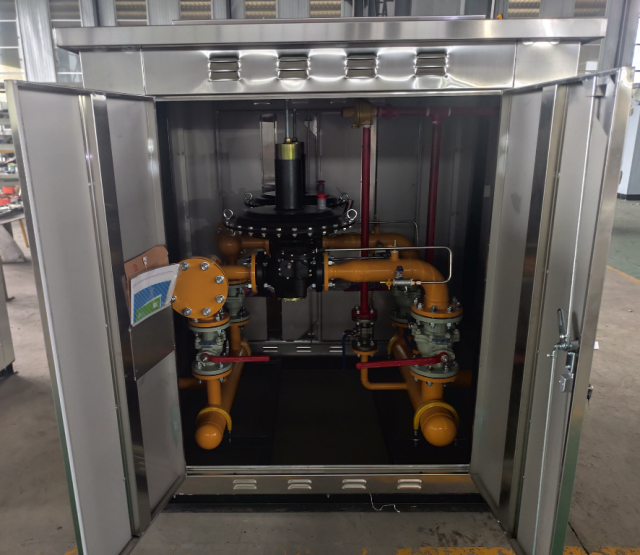

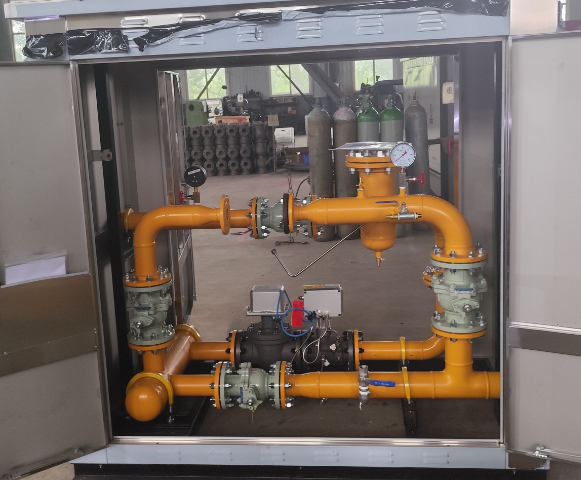

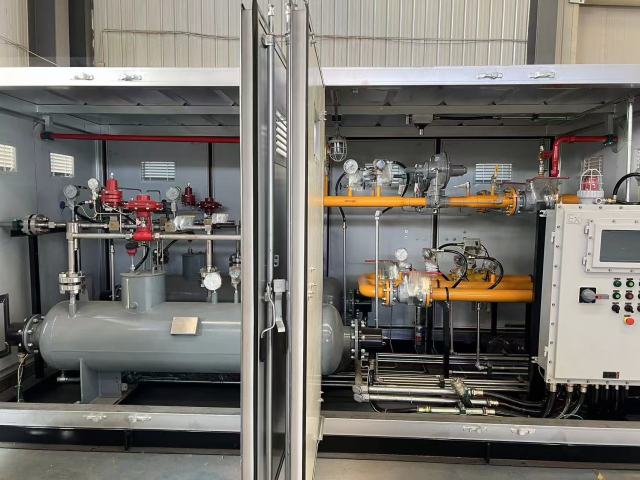

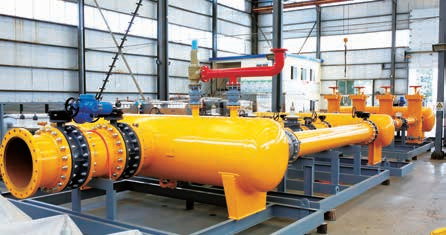

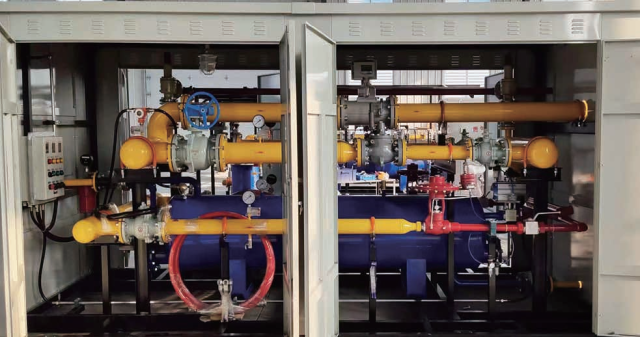

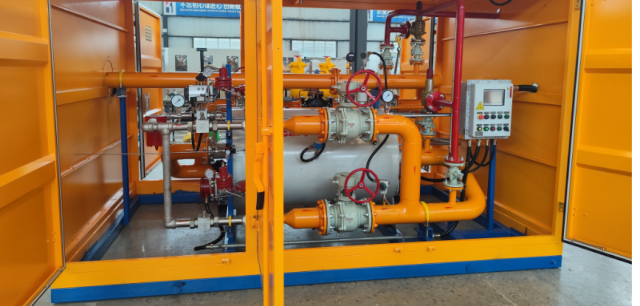

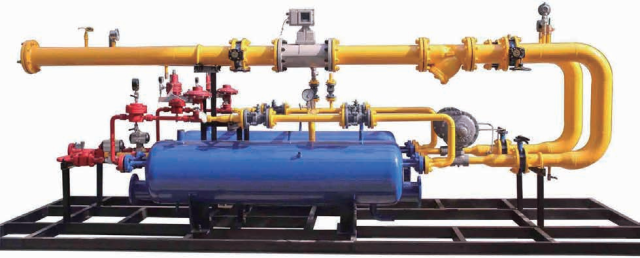

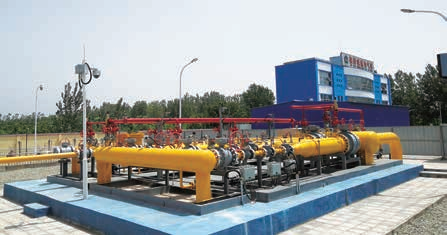

Natural Gas Pressure Regulating Station (City Gate Station)

Natural Gas Pressure Regulating Station (City Gate Station)

1. Core Basic Parameters

 Item Specification

Inlet Pressure ＜ 10.0 MPa

Outlet Pressure 0.05 ~ 0.4 MPa

Pressure Regulation Accuracy AC1 (High Precision)

Shut‑off Pressure Class SG2.5

Safety Cut-off Class AQ5

Response Time ≤ 1 second

Operating Temperature -40℃ ~ 60℃

Applicable Media Natural gas, town gas, LPG and other fuels

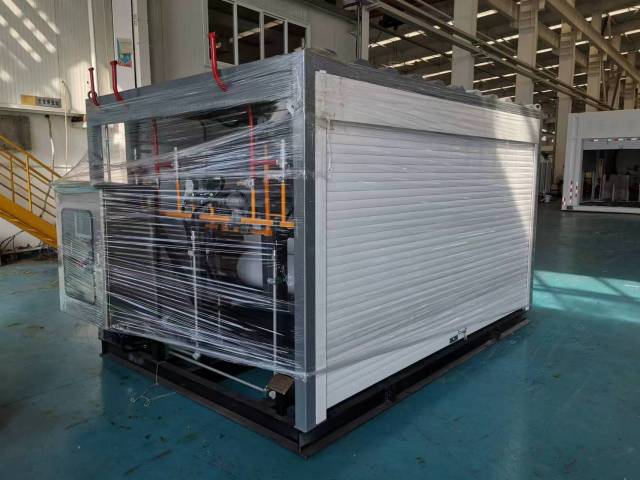

Structure Skid‑mounted integrated system

Function Configuration Integrated purification, regulation, metering, safety protection, odorization, automatic control

1. Core Product Advantages
2. Skid‑mounted Integration for Fast Commissioning

- All functional modules are integrated in one skid, including filtration, regulation, metering and safety protection.

- On-site installation only requires pipeline connection, greatly shortening construction and commissioning time.

- Modular design facilitates transportation and hoisting, ideal for remote areas and emergency gas supply.

2. Full‑Process Function Coverage, One‑Stop Solution

- Purification & Separation: Filters, cyclone separators efficiently remove impurities and moisture.

- Flexible Regulation: Supports 1‑stage / 2‑stage / 3‑stage regulation; single / dual / multi‑path configuration.

- Safety Redundancy: Triple protection – monitoring, safety cut-off, and relief to prevent overpressure and leakage.

- Precise Metering: Turbine, orifice plate, or ultrasonic flowmeters available for trade metering.

- Intelligent Upgrade: Alarm, odorization (manual / automatic, single / dual pump), and remote control system.

3. Extreme Environment Adaptability

- Operating temperature: -40℃ ~ 60℃, stable in cold, hot and high‑altitude areas.

- Corrosion‑resistant materials for core parts, suitable for coastal and chemical zones.

- Response time ≤ 1s, quickly stabilizes pipeline pressure for downstream users.

4. Intelligent & Customizable Design

- Flexible functions: metering (J), power generation (D), dehydration (T), etc.

- Valves: ball / butterfly; actuation: manual / electric / pneumatic; heating: electric / hot water / steam.

- Automatic control system collects pressure, temperature, flow and status, compatible with SCADA.

1. Why Choose Hebei Junxin Regulating Station?

1. Safety & Compliance: Fully meets national gas standards, certified for pressure equipment and explosion protection.
2. Efficient Delivery: Skid‑mounted design reduces on-site work and overall construction cost.
3. Custom Service: Personalized solutions based on flow, pressure and functional requirements.
4. Local Support: Direct supply from Hebei factory, fast delivery, commissioning and 7×24 technical support.
5. Smart Empowerment: Remote monitoring and data collection for intelligent gas network management.

Hebei Junxin New Energy Natural Gas Pressure Regulating Station features integration, intelligence and high reliability.

We provide one‑stop regulation solutions from city gate stations to end users, making it the ideal choice for urban gas, industrial parks and long‑distance pipelines.
